Large Rotor Belt Drive Balancing Machine

Large Rotor Belt Drive Balancing Machine

1000-100,000 USD ($)/Gram

Get a Price/Quote

Product Details:

Material Cast Iron Machine Bed
Capacity 15 tons Ton/day
Computerized Yes
Automatic Grade Manual
Supply Ability : 1000 Gram Per Month
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 Gram
Price 1000-100,000 USD ($)/Gram
Price Range 1000.00 - 5000.00 USD ($)/Gram

Product Specifications

Capacity 15 tons Ton/day
Automatic Grade Manual
Material Cast Iron Machine Bed
Computerized Yes

Trade Information

Supply Ability 1000 Gram Per Month
Delivery Time 30 Days

Product Description

Salient Features :

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application
PHQ series are applicable for balancing rotating parts of motor, fan impeller, pump impeller, turbocharger, crankshaft, centrifuge, roller, spindle etc

Applicable to large workpieces :

Technical data at a glance	PHQ-5000
Max Mass of Workpiece(kg)	5000
Max Diameter of Workpiece (mm)	Φ2400
Distance Between Two Support Bearings (mm)	500~2200
Journal Diameter Scope of Workpiece (mm)	Φ40~380
Diameter Scope of Driving Belt (mm)	Φ50~1000
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)	795,18531)
Motor Power (kw)	152)
Length of Bed (mm)	2500
Min Achievable Residual Unbalance Amount (emar)	≤1g· mm/kg

Other Products in 'Belt Drive Balancing Machines' category

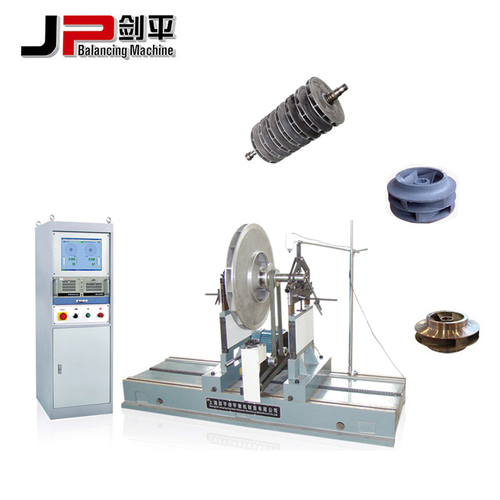

Centrifugal Water Pump Impeller Dynamic Balancing Machine Automatic Grade : Manual Minimum Order Quantity : 1 Computerized : Yes Price : 1000100,000 USD ($)/Gram Material : Cast Iron Machine Bed Capacity : 15 tons Ton/day Dimension(L*W*H) : 1700*750*1300 Millimeter (mm) Weight : 560 kg Kilograms (kg) Color : Blue Product Type : Testing Equipment Control System : Human Machine Interface Processing Type : / Voltage : 380 V Watt (w) Warranty : 1 year Power : 1.5 kw Watt (w)
